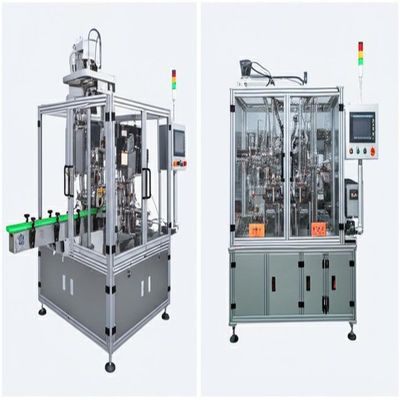

Fully Automated Lotion Pump and Trigger Sprayer Assembly Machine with 0.5m³/min Air Consumption and 4L Silicone Oil Storage

Fully Automated Lotion Pump and Trigger Sprayer Assembly Machine with 0.5m³/min Air Consumption and 4L Silicone Oil Storage

ব্র্যান্ড নাম: SENCAN
মডেল নম্বর: এসসি-টিপি -798
MOQ: 1 সেট
মূল্য: Negotiate price according to actual situation
পেমেন্ট শর্তাবলী: টি/টি, এল/সি
সরবরাহ ক্ষমতা: 2-20 সেট
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
সাক্ষ্যদান:
CE, ISO9001
ভোল্টেজ:
220 ভি
রক্ষণাবেক্ষণ:
সহজ
অপারেশন ইন্টারফেস:
টাচ স্ক্রিন
খাওয়ানো পদ্ধতি:
স্পন্দিত ডিস্ক
ত্রুটি সনাক্তকরণ:
স্বয়ংক্রিয়
অপারেশন পদ্ধতি:
টাচ স্ক্রিন নিয়ন্ত্রণ
পণ্য শংসাপত্র:
সিই, আইএসও
বায়ু খরচ:
0.5m³/মিনিট
অটোমেশন স্তর:
সম্পূর্ণ স্বয়ংক্রিয়
ক্ষমতা:
গ্রাহকের প্রয়োজনীয়তা অনুযায়ী
প্যাকেজিং বিবরণ:
কাঠের কেস
বিশেষভাবে তুলে ধরা:

0.5m³/min Air Consumption Lotion Pump Assembly Machine

,

Above 95% Operation Rate Trigger Sprayer Assembly Machine

,

4L Silicone Oil Storage Daily Necessities Assembly Machine

পণ্যের বর্ণনা
Lotion Pump Liquid Trigger Sprayer Assembly Machine and Precise Daily Necessities Assembly Machine for Consistent and Accurate Assembly
Key Features
  • Linear sliding rail conveying system with servo motor drive for precise intermittent movement and static assembly positioning
  • Independent workstations with secondary positioning to achieve over 98% product qualification rate
  • Cylinder-powered manipulators for simplified maintenance and faster spare parts replacement
  • Automatic silicone oil application during tube insertion with 4L oil storage capacity
  • Optional enclosure for feeding plate to reduce operational noise
  • Integrated quality detection at each assembly stage to eliminate defective products
  • PLC control system with touch screen interface for easy operation
Technical Specifications
Applicable Products Lotion pump, shampoo pump, water sprayer, trigger sprayer, perfume pump, spray nozzle
Production Speed 1500-2500pcs/hr (customizable to customer requirements)
Product Qualification Rate Above 98%
Operation Rate Above 95%
Power Requirements AC380V, 50Hz, 4kw/hr
Dimensions Variable based on production speed requirements
Weight Approximately 3000kg
Operator Requirement 1 person per machine
